How to connect Google Drive with Cacoo

Connect Google Drive and Cacoo to:

In this guide, we’ll show you how to:

  • Connect Google Drive and Cacoo
  • Save diagrams to Google Drive
  • Create diagrams from Google Drive
  • Open diagrams from Google Drive
  • Share diagrams from Google Drive

Connect Google Drive and Cacoo

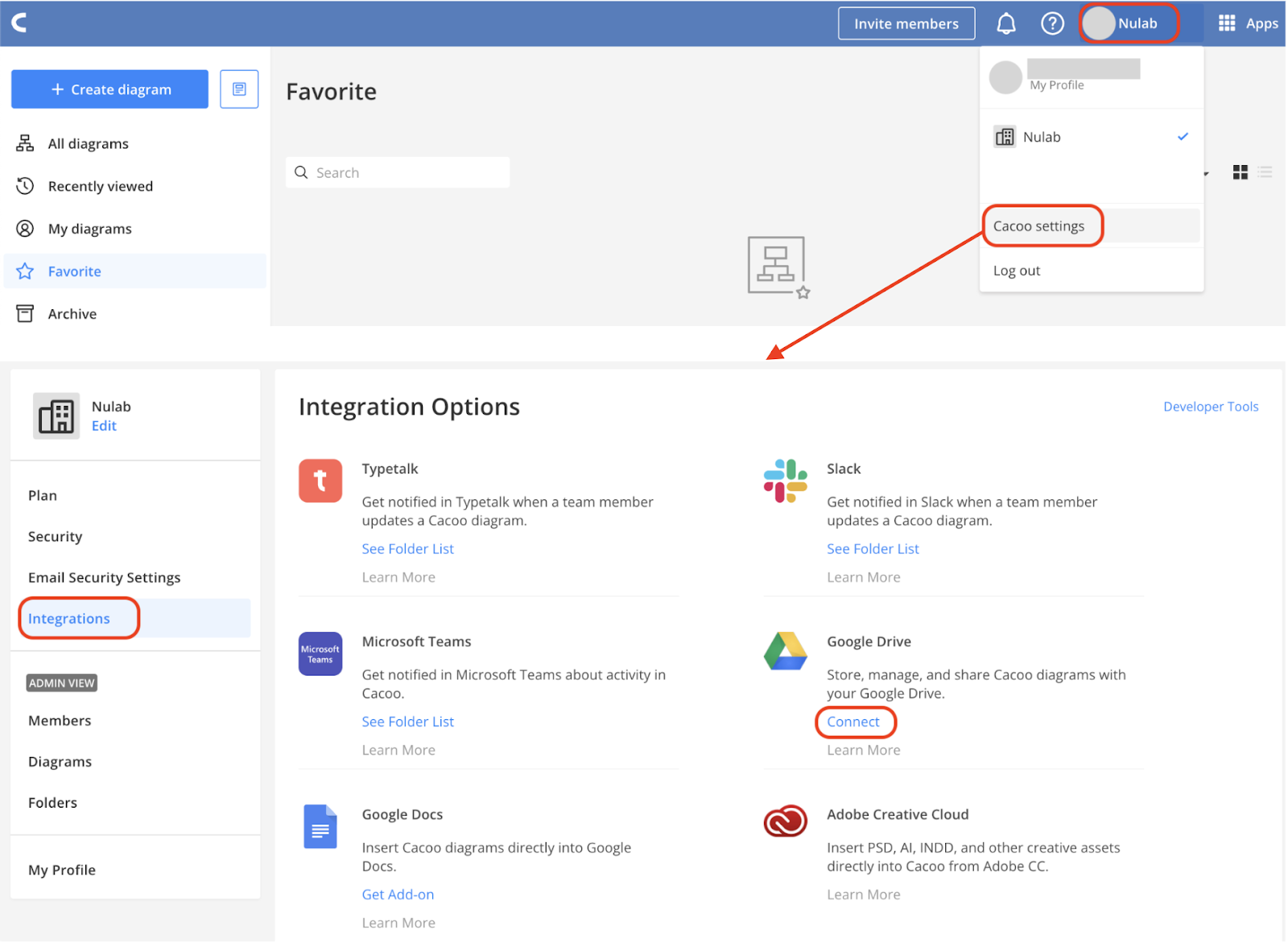

To connect Google Drive and Cacoo:

  • Select your profile or organization icon in the top navigation.
  • Select “Cacoo settings.”
  • Select the “Integrations” tab.
  • Find Google Drive in the options.
  • Select “Connect.”
  • Sign into your Google account and allow access.

Save diagrams to Google Drive

Once your accounts are connected, you can share diagrams on Google Drive. Open the diagram you want to share and:

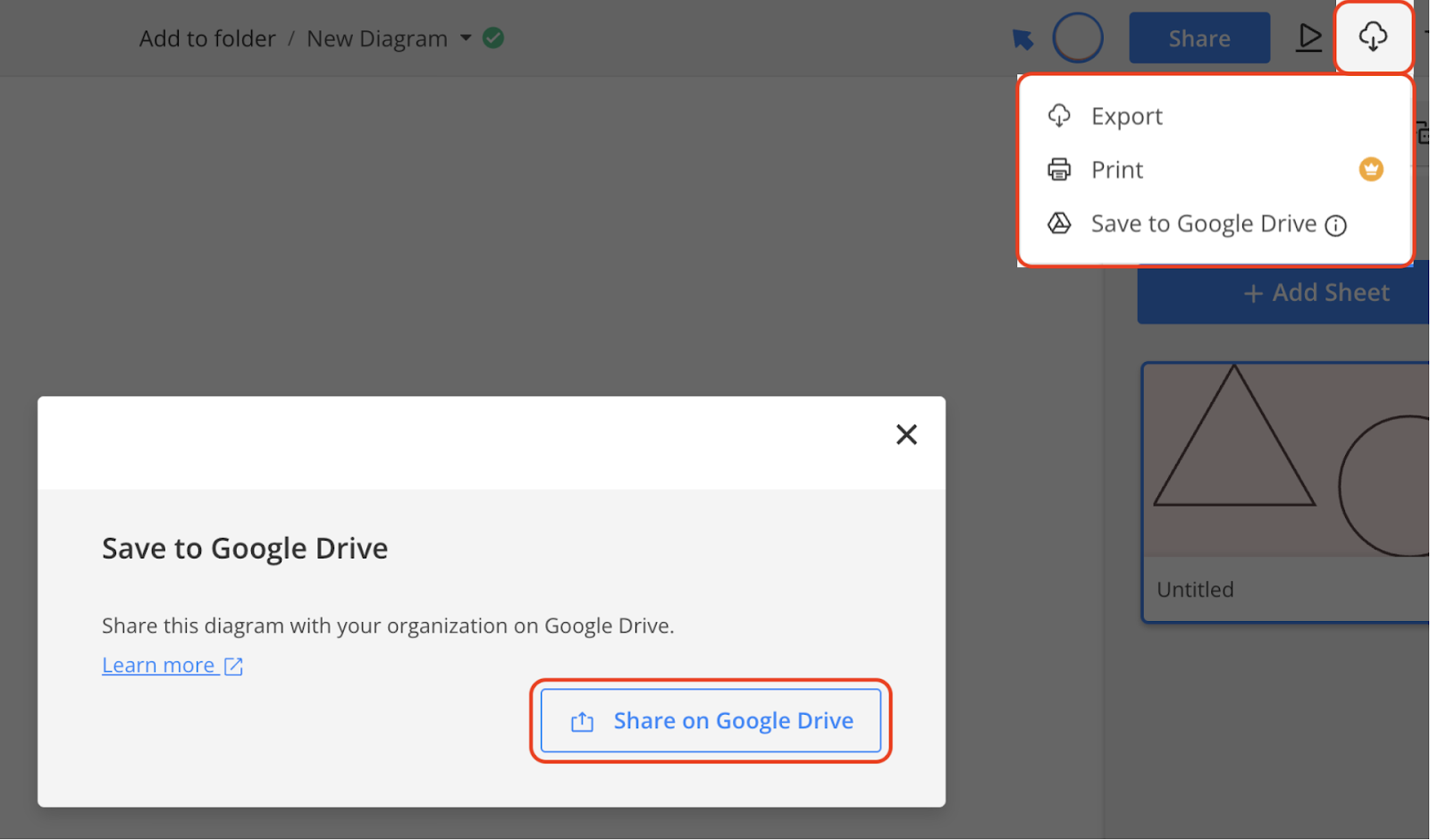

  • Select the “Export/Print” cloud icon in the top-right corner.
  • Select “Save to Google Drive.”
  • Select “Share on Google Drive.”

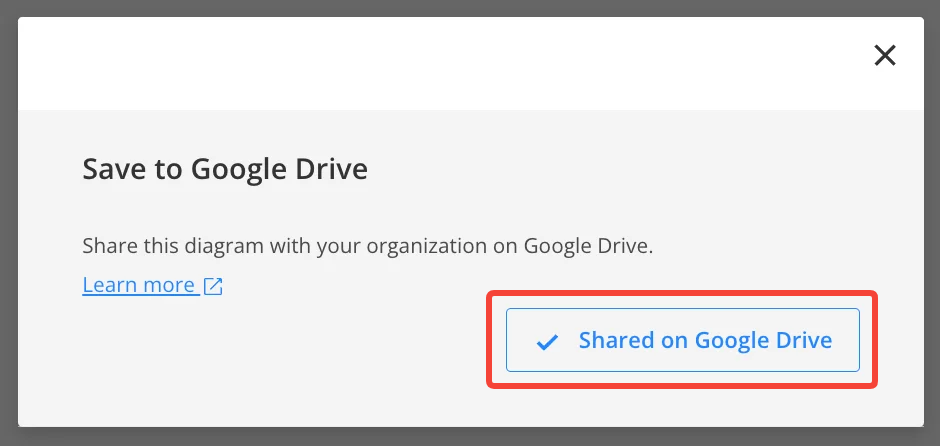

Once shared, “Shared on Google Drive” replaces the button text. The thumbnail preview in Google Drive only shows the diagram’s first sheet. Open the file to see all sheets.

Create diagrams from Google Drive

To create a diagram from Google Drive:

  • Go to Google Drive.
  • Select “New” on the top-left corner.
  • Select “More.”
  • Select “Cacoo.”

Your diagram is saved to both Cacoo and Google Drive.

Open diagrams from Google Drive

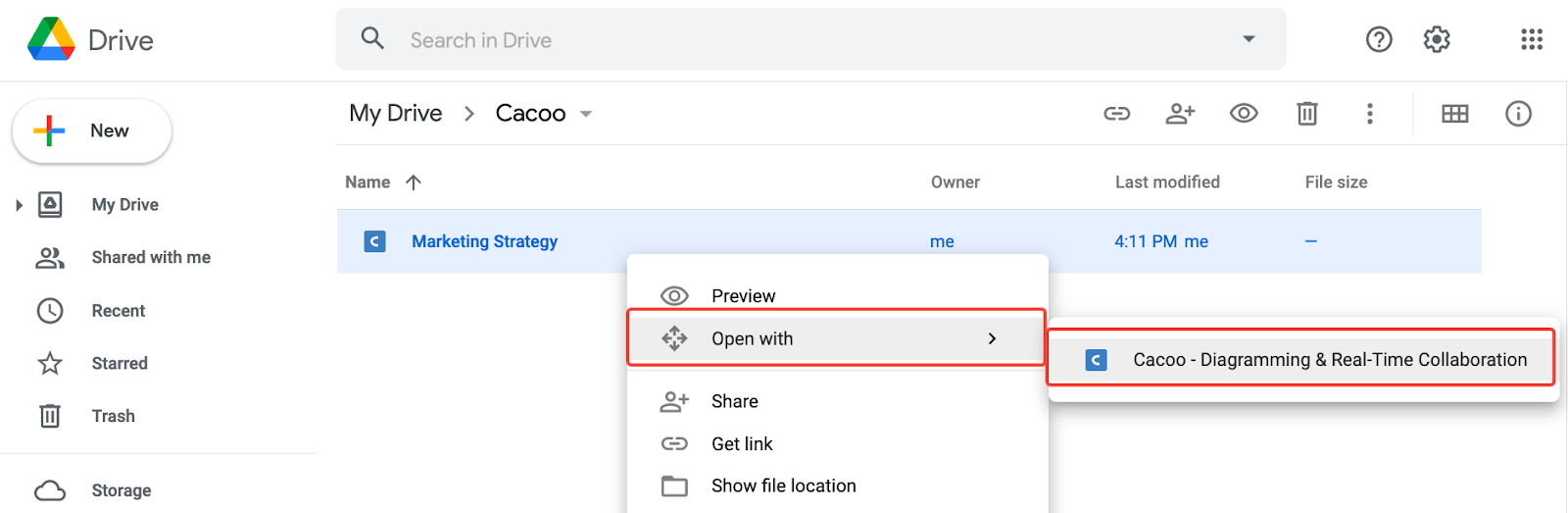

To open a diagram from Google Drive:

  • Go to Google Drive.
  • Right-click on the diagram file.
  • Select “Open with.”
  • Select “Cacoo.”

 Share diagrams from Google Drive

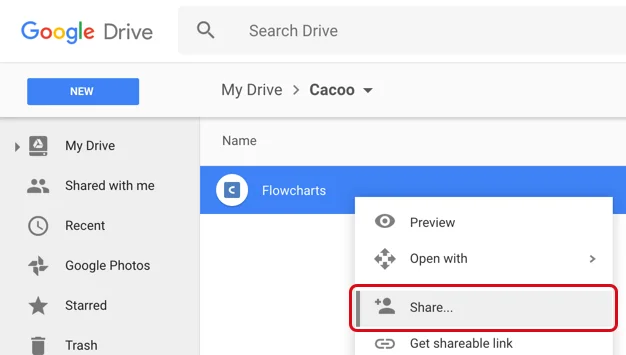

To share a diagram from Google Drive:

  • Go to Google Drive.
  • Right-click on the diagram file.
  • Select “Share.”
  • Choose to share the file via email or link.
