Add and manage sheets

In your diagram, you can easily add more sheets, duplicate them or even manage the sheets by deleting or re-ordering their sequence.

Add sheet

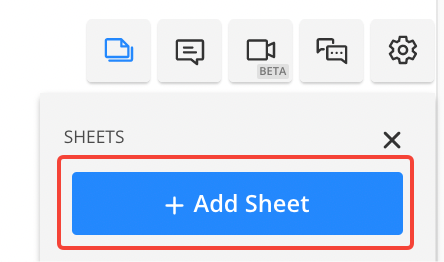

You can add more sheets by clicking + Add Sheet button on the sheets preview panel.

Duplicate sheet

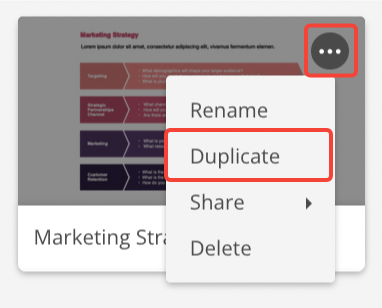

You can duplicate the sheet within the same diagram. In the sheet preview panel, hover over the sheet you would like to copy, click on the ... icon and select Duplicate.

Copying a sheet content from a different diagram

Please open the diagram you want to copy elements from and a blank diagram.

Select everything on the sheet you want to copy by using the keyboard shortcut Ctrl + A (Command⌘+A for Mac), then copy all objects by Ctrl + C (Command⌘+C).

Go to the target sheet of the new diagram and paste the copied contents using Ctrl +V (Command⌘+V).

Naming a sheet

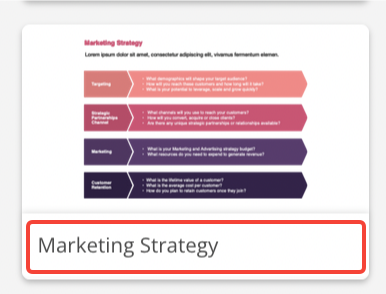

In the sheet preview panel, hover over the sheet you would like to change the name of, then click on the sheet title. You can update the sheet's title once you see the blinking cursor.

After entering the sheet name, press enter to apply the changes.

Changing the order of sheets

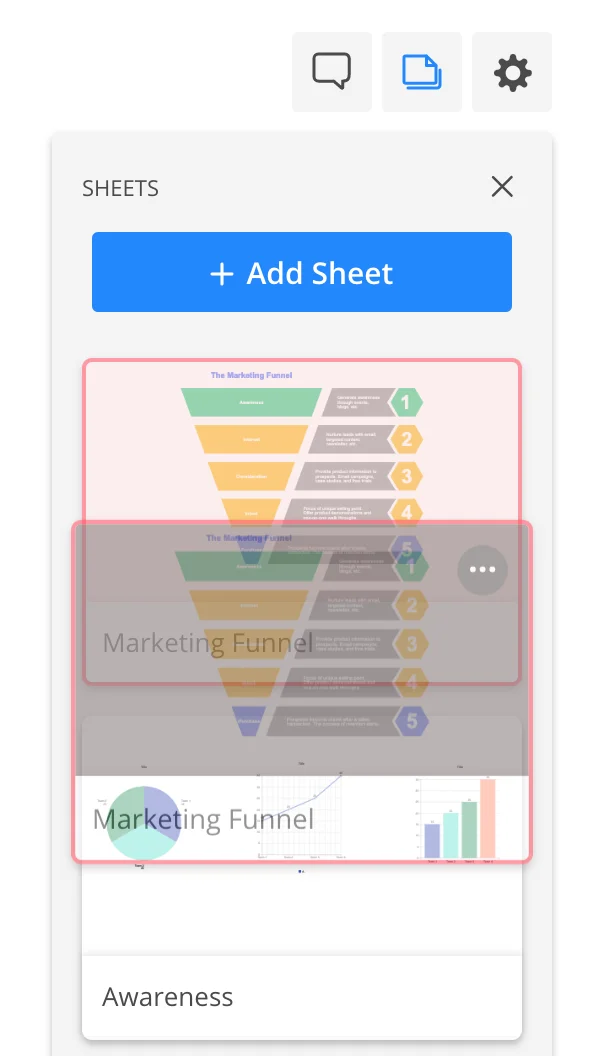

In the sheets preview panel, select the sheet you would like to change the order of, then drag it up or down the panel to its target destination.

Deleting a sheet

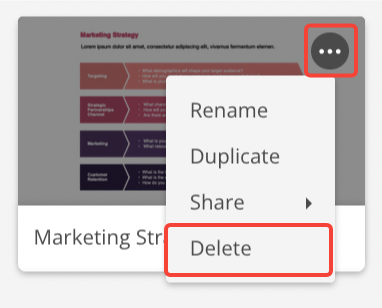

In the sheet preview panel, hover over the sheet you would like to delete, click on the ... icon and select Delete.

Did you know?

Delete sheet option will only available when the diagram has more than one sheet.
