You can archive old diagrams or unused diagrams and manage them in the archived folder. From there, you can delete the archived diagram or restore them.
Archive
To archive old diagrams or unused diagrams:

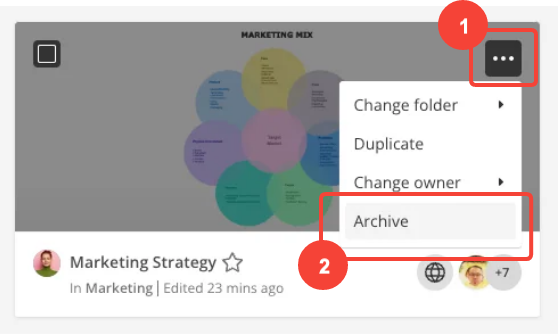

- On the Cacoo Dashboard, hover over to the diagram and click on the “...” icon.
- Select Archive from the menu.
Useful tip!
Archive action will not delete your diagram. All archived diagrams will be stored in the Archive folder.Access archived diagrams

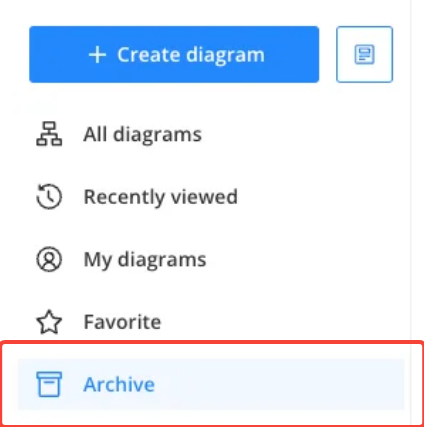

To access archived diagrams, select Archive from your Cacoo Dashboard side bar.
Restore archived diagram
To restore the archived diagram, go to the archive folder and select the Restore icon.
To restore multiple diagrams at once, select the diagrams and click Restore.
Delete diagrams

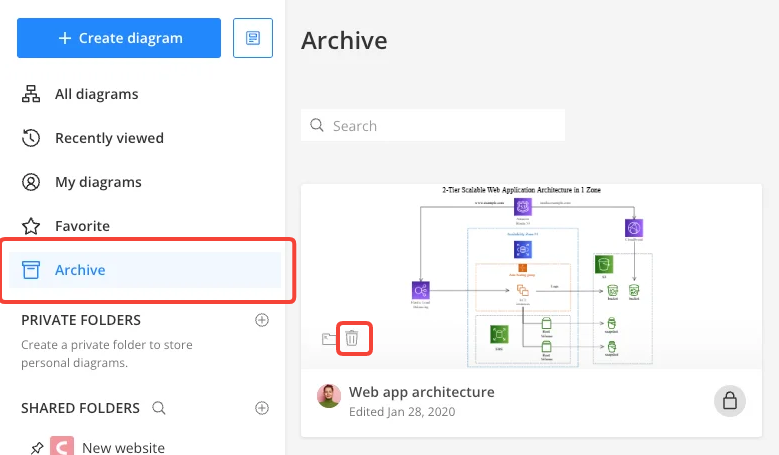

To delete the diagram, you must archive the diagram first and go to the archive folder and select the Delete icon.

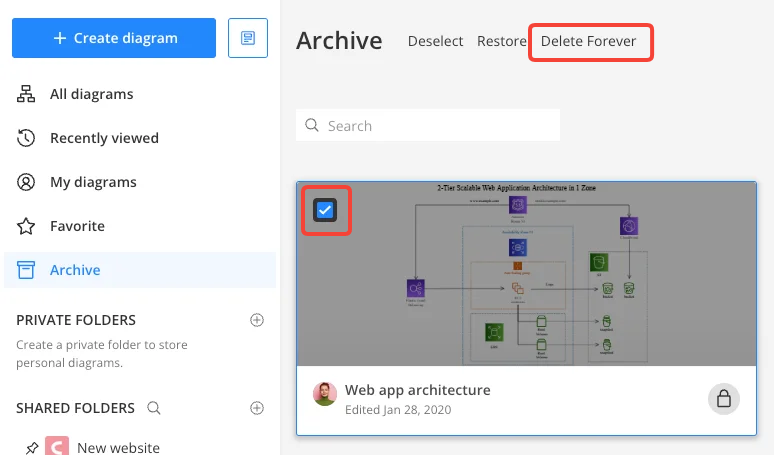

To delete multiple diagrams at once, select the diagrams and click Delete Forever.
Did you know?
The Cacoo team cannot restore deleted diagram.
